Air Conditioners / Duct Ac

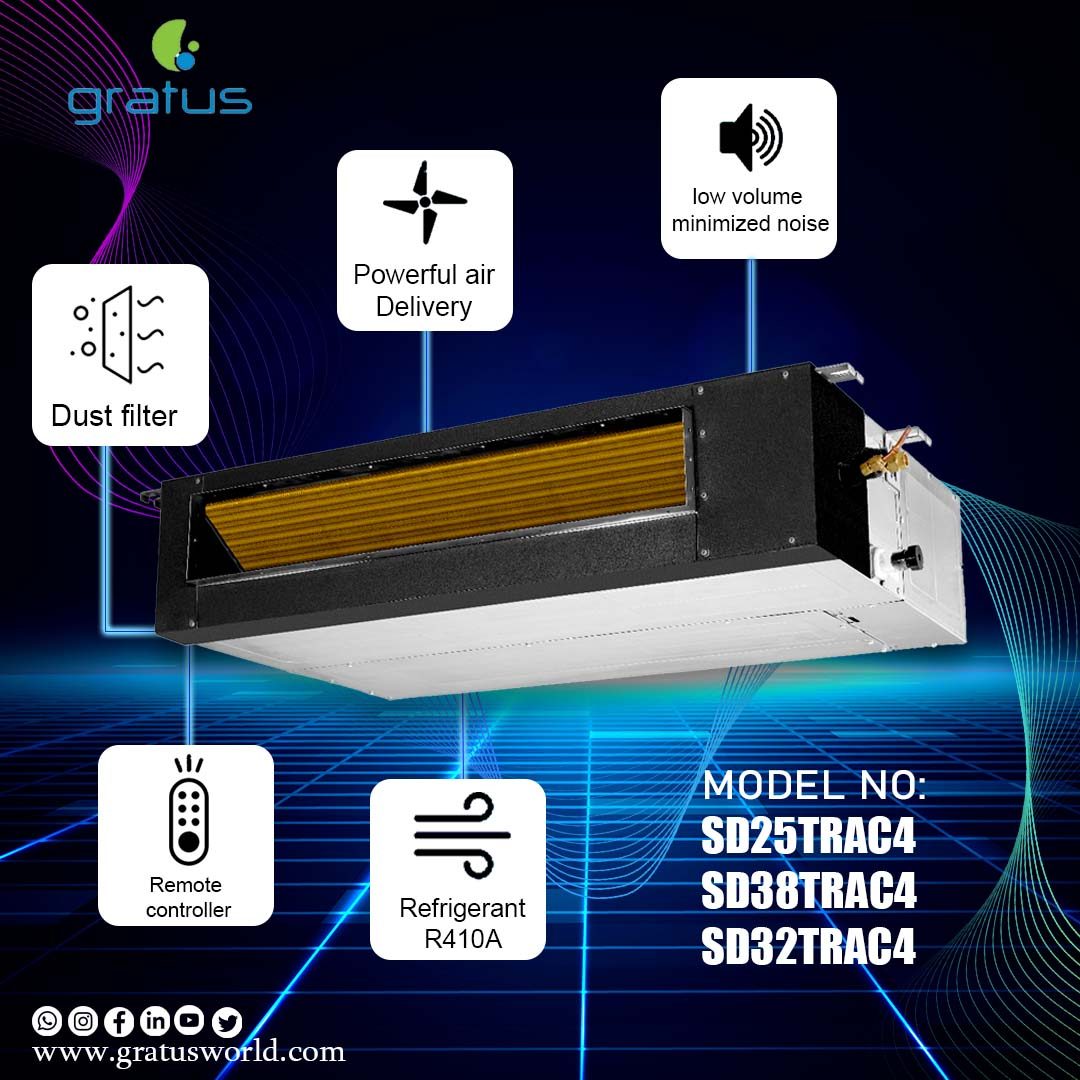

Gratus 2 Ton Duct Type Air Conditioner | T3 Tropicalized | Heavy-Duty Cooling | SD25TRAC4

The Gratus SD25TRAC4 2 Ton Duct Type Air Conditioner is designed for powerful and energy-efficient cooling in commercial and residential applications. Featuring T3 tropicalized performance, operation up to 60°C, automatic ESP self-adaption, multiple protection systems, and double anti-corrosion technology, it ensures reliable comfort even in extreme climates.

Send Enquiry

The Gratus SD25TRAC4 2 Ton Duct Type Air Conditioner is engineered to deliver dependable cooling performance for offices, villas, hotels, restaurants, retail outlets, and other commercial spaces. Built to withstand harsh climates, it operates efficiently in ambient temperatures of up to 60°C, making it an excellent choice for the UAE and GCC regions.

Its Automatic ESP Self-Adaption Technology intelligently adjusts airflow according to the ducting system, ensuring optimal air distribution, quieter operation, and enhanced indoor comfort without manual intervention.

The advanced Multiple Protection System safeguards the unit with high-pressure protection, low-pressure protection, compressor overload protection, overheating protection, anti-freezing protection, phase-loss and phase-reverse protection, and intelligent sensor fault detection with error code display, ensuring long-lasting and reliable operation.

Designed for installation flexibility, the unit supports rear air intake as standard with an optional bottom air intake, allowing it to adapt to various ceiling and duct layouts.

Built with Double Anti-Corrosion Technology, the outdoor unit features galvanized steel construction with advanced powder coating, providing superior resistance to corrosion, humidity, and coastal environments for extended durability.

With powerful cooling, intelligent airflow management, and robust construction, the Gratus SD25TRAC4 is an ideal ducted air conditioning solution for demanding residential and commercial environments.

  • Brand: Gratus
  • Model Number: SD25TRAC4
  • Product Type: Duct Type Air Conditioner
  • Capacity: 2 Ton
  • Cooling Capacity: 23,500 BTU/h
  • Operating Condition: T3 Tropicalized
  • Maximum Ambient Operating Temperature: Up to 60°C
  • Compressor Protection: Multiple Protection System
  • Airflow Control: Automatic ESP Self-Adaption
  • Air Intake: Rear (Standard), Bottom (Optional)
  • Outdoor Protection: Double Anti-Corrosion Technology
  • Power Supply: 220–240V, 50Hz, Single Phase
  • Cooling Power Input (T1/T3): 1.96 / 2.35 kW
  • Indoor Unit

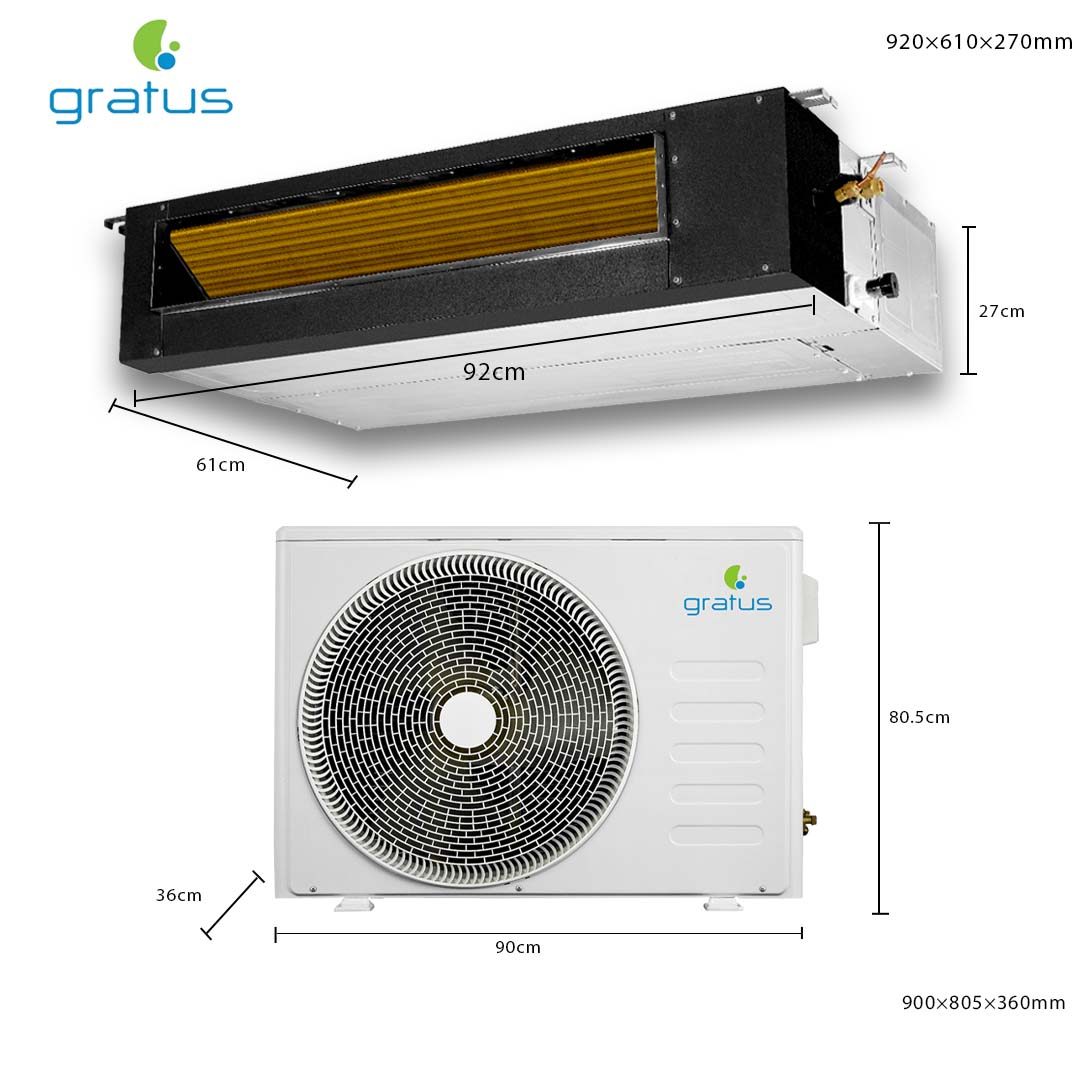

    • Dimensions (W × D × H): 920 × 610 × 270 mm
    • Packaging Dimensions: 1120 × 690 × 340 mm
    • Net Weight: 26 kg
    • Gross Weight: 31 kg
    • Drain Pipe Size: DN20 (R3/4")

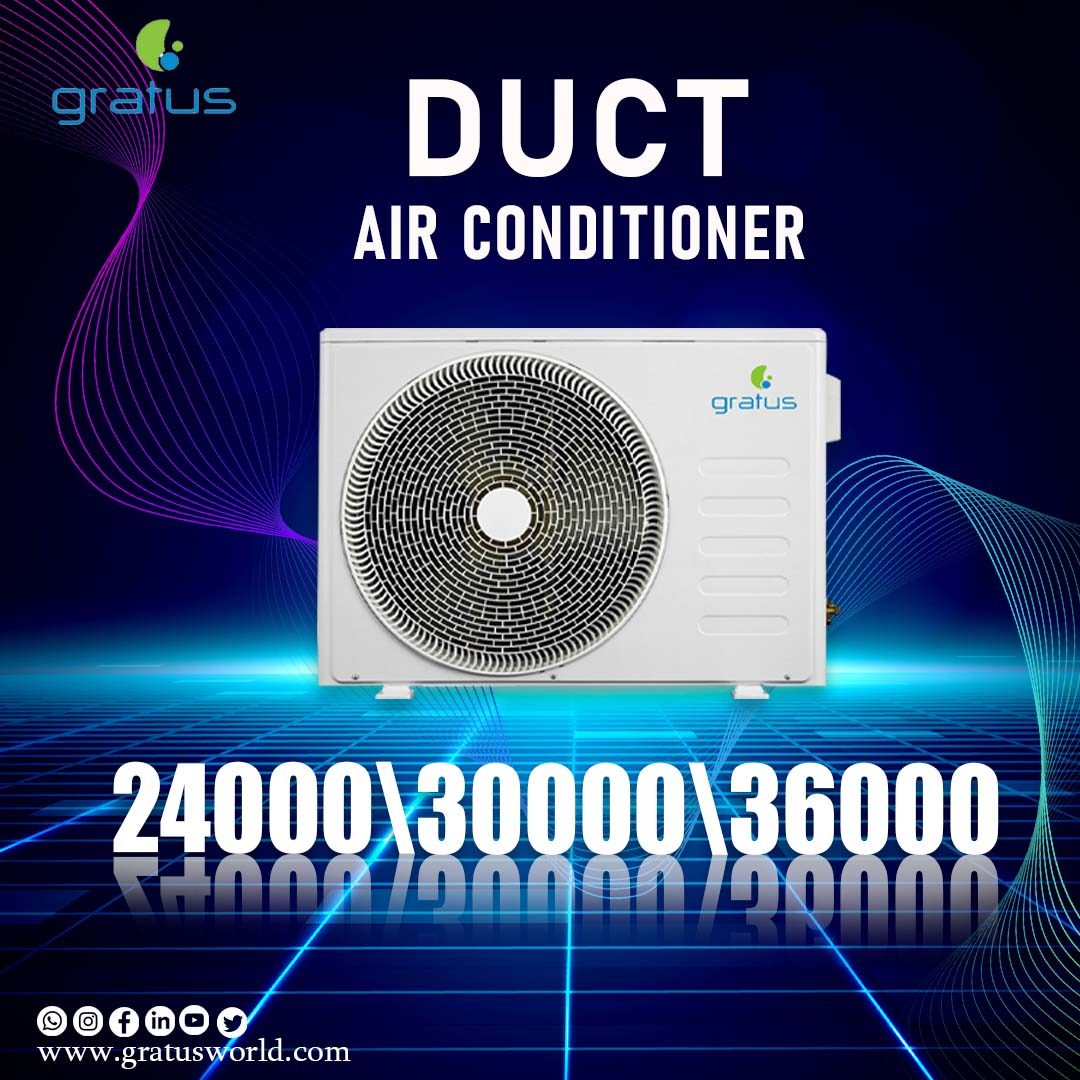

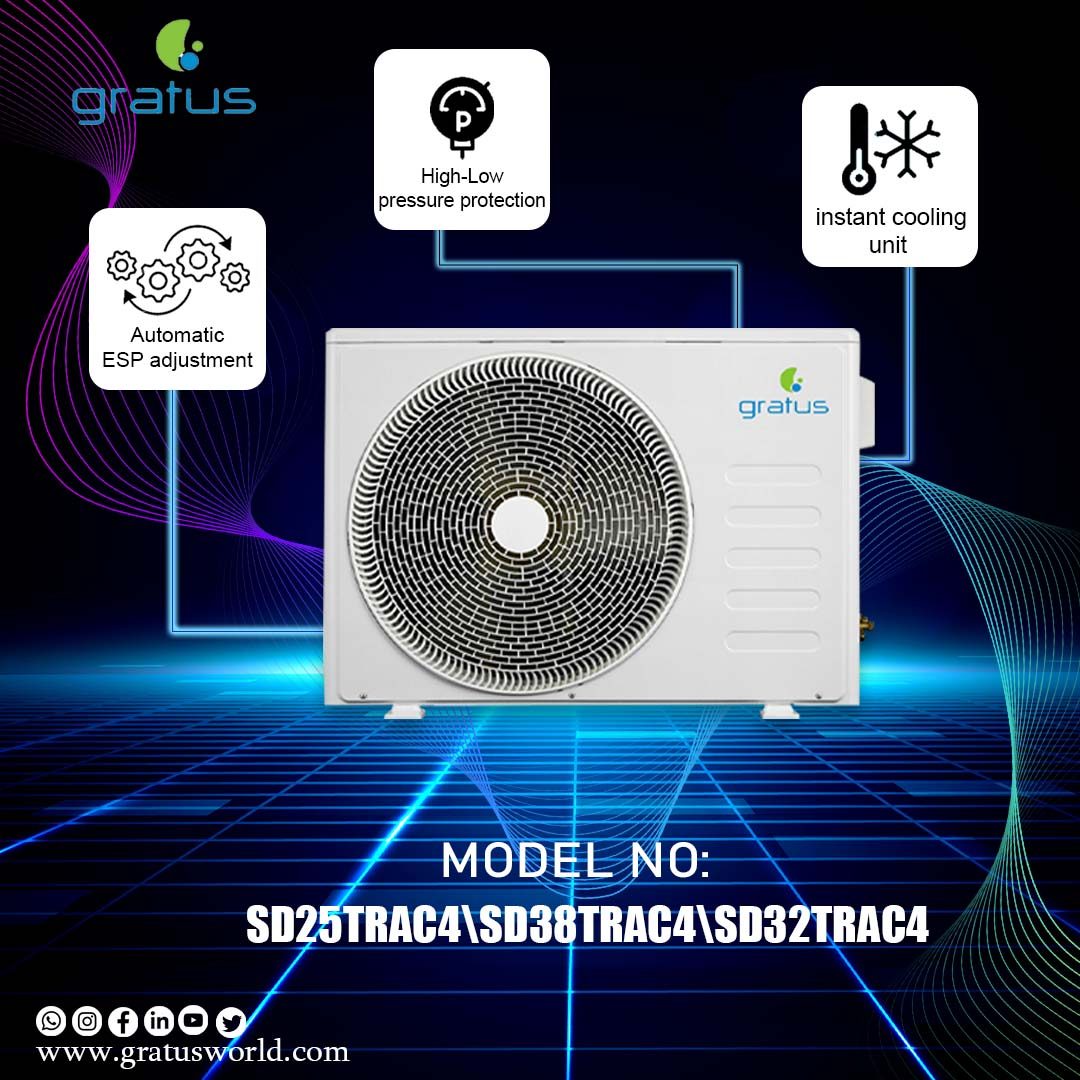

    Outdoor Unit

    • Power Supply: 220–240V, 50Hz, Single Phase
    • Dimensions (W × D × H): 900 × 805 × 360 mm
    • Packaging Dimensions: 1020 × 860 × 475 mm
    • Net Weight: 55 kg
    • Gross Weight: 59 kg
    • Country of Origin: Made in China

  • 2 Ton Heavy-Duty Cooling
  • 23,500 BTU Cooling Capacity
  • T3 Tropicalized Performance
  • Operates in Ambient Temperatures up to 60°C
  • Automatic ESP Self-Adaption Technology
  • Multiple Protection System
  • High & Low Pressure Protection
  • Compressor Overload Protection
  • Overheating & Anti-Freezing Protection
  • Phase Loss & Phase Reverse Protection
  • Sensor Failure Alarm with Error Code Display
  • Flexible Rear & Bottom Air Intake
  • Double Anti-Corrosion Technology
  • Quiet & Energy-Efficient Operation
  • Ideal for Residential & Commercial Applications
