Gratus 4 Ton Duct Type Air Conditioner | T3 Scroll Compressor | Heavy Duty Cooling | SD50TSAC4

The Gratus SD50TSAC4 Duct Type Air Conditioner is engineered to provide high-performance cooling for large commercial and industrial environments. Featuring a durable Scroll Compressor, this unit ensures powerful cooling performance while maintaining energy efficiency, even during extreme summer temperatures.

Built for T3 tropical climates, the SD50TSAC4 operates efficiently in ambient temperatures of up to 55°C, making it ideal for the demanding weather conditions of the UAE and GCC.

Its advanced Multiple Protection System safeguards the compressor with high-pressure, low-pressure, overload, overheating, anti-freezing, phase-loss, phase-reverse, and sensor failure protection, ensuring long-lasting reliability and uninterrupted performance.

The intelligent Self-Adaption Technology automatically adjusts the External Static Pressure (ESP) according to the duct system, delivering optimized airflow with reduced operating noise for maximum indoor comfort.

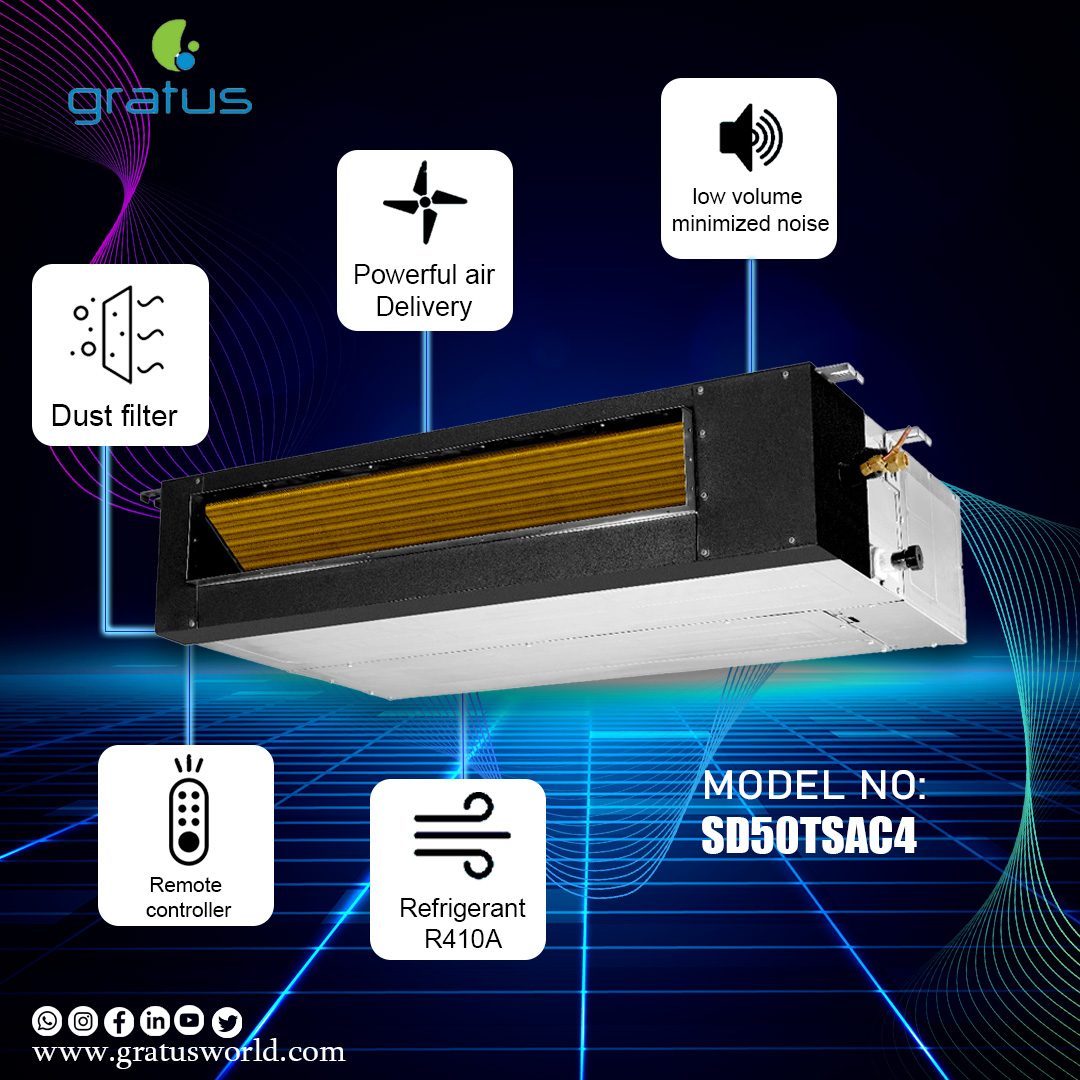

Designed with a Flexible Air Intake System, the unit supports rear air intake as standard with an optional bottom air intake, making installation easier for various ceiling layouts and building designs.

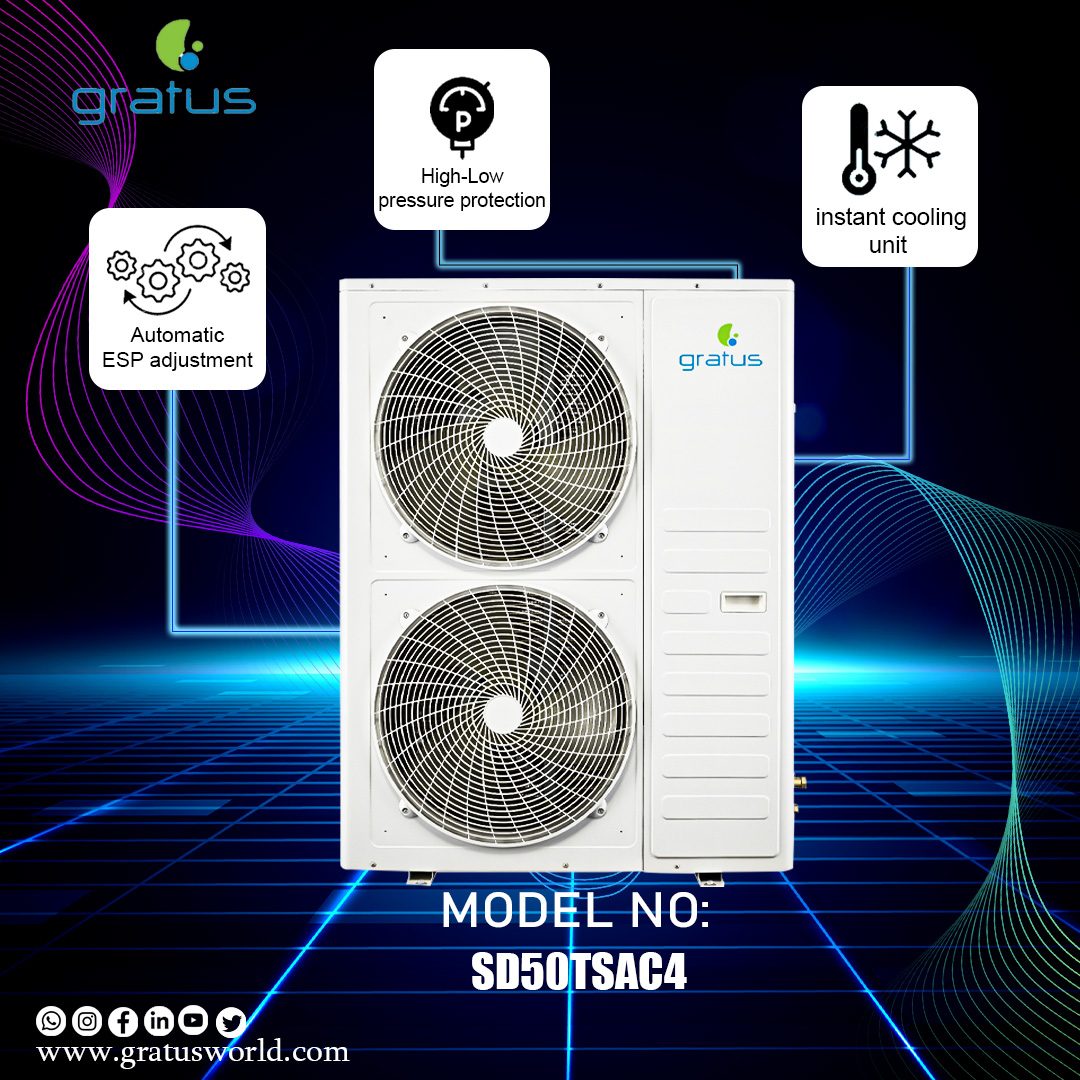

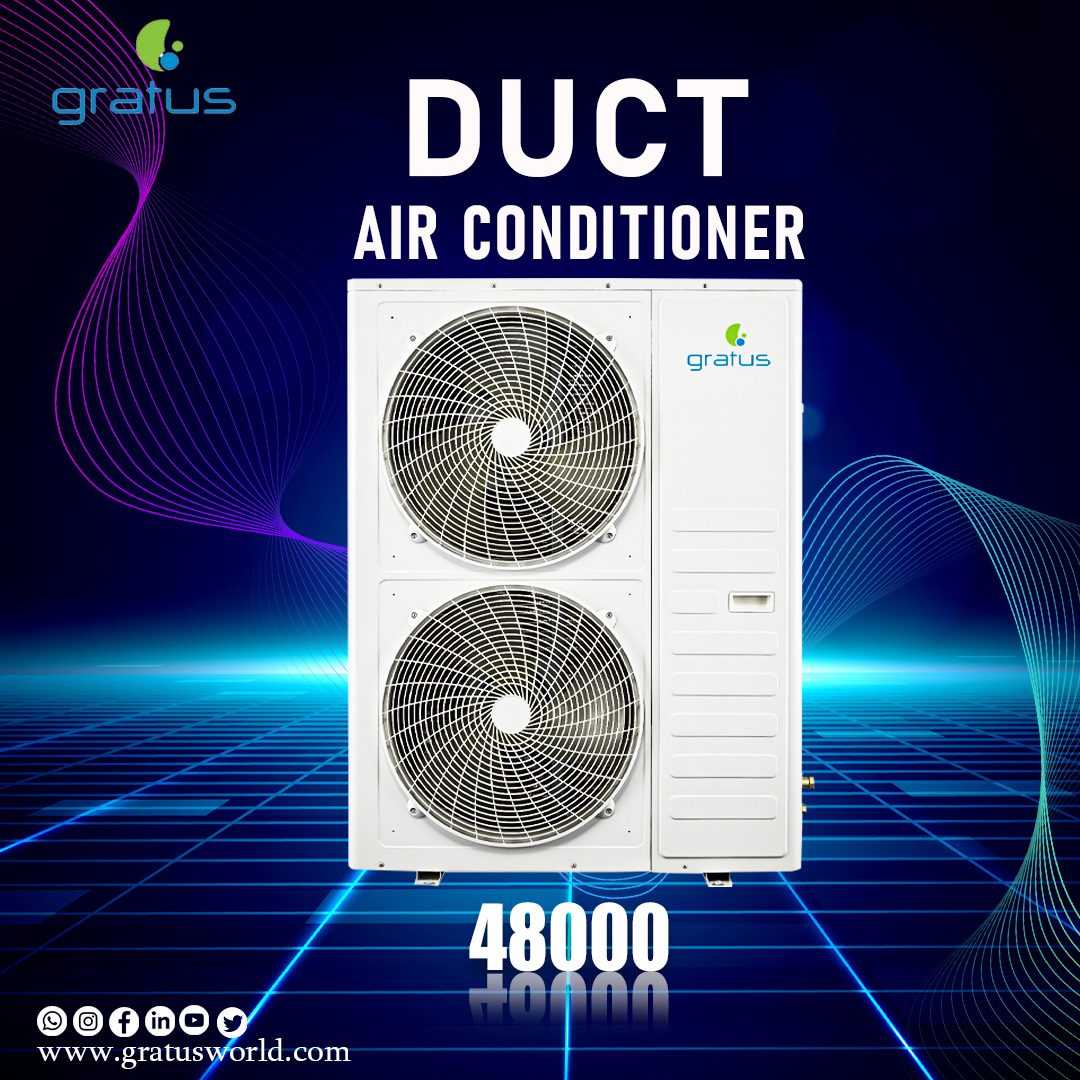

To ensure durability in coastal and humid environments, the outdoor unit is protected by Double Anti-Corrosion Technology, featuring galvanized steel construction with premium powder coating for enhanced resistance against corrosion.

Whether installed in offices, shopping outlets, hotels, restaurants, warehouses, or commercial buildings, the Gratus SD50TSAC4 delivers dependable, quiet, and energy-efficient cooling throughout the year.

• Model: SD50TSAC4
• Air Conditioner Type: Duct Type
• Cooling Capacity (T1): 34,500 BTU/h
• Cooling Capacity (T3): 30,500 BTU/h
• Compressor Type: Scroll Compressor
• Climate Type: T3 Tropicalized
• Maximum Operating Temperature: Up to 55°C
• Power Supply: 220–240V, 50Hz, Single Phase
• Cooling Power Input (T1): 2.88 kW
• Cooling Power Input (T3): 3.50 kW
• Air Intake: Rear (Standard), Bottom (Optional)
• Drain Pipe Size: DN20 (R3/4")
• Installation Type: Concealed Duct
• Suitable For: Offices, Hotels, Restaurants, Retail Stores & Commercial Buildings

• High-Efficiency Scroll Compressor
• T3 Tropicalized Operation (Up to 55°C)
• Automatic ESP Self-Adaption Technology
• Intelligent Multiple Protection System
• Flexible Rear & Bottom Air Intake
• Double Anti-Corrosion Outdoor Unit
• Optimized Duct Airflow
• Low Noise Performance
• Heavy-Duty Commercial Cooling
• Reliable Performance in Extreme Climates
